Facilities Centre logging and perforation

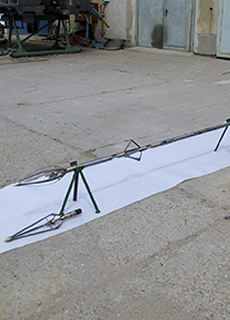

Logging Tools
- CCL – Casing collar locator
- GR – Gamma ray sensor
- NNK – Neutron logging tool
- DDN – Neutron logging tool – Dual Detector
- GPD – Gravel pack density logging tool
- CWH – Capacitance water hold-up tool
- TM, TMD – Thermometry
- IBS, FBS, IS – Flowmeters
- Noise – Acoustic noise sensor
- UWRBT, CBL, AC – Cement bond logging tools
- MFC – Multi-finger caliper – Tubing and casing logging tool

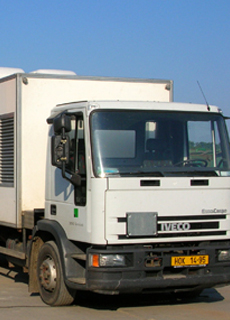

IVECO Logging Truck
- IVECO EuroCargo MLC 120 Chassis
- Power – 130 kW, PTO
- Year of manufacture – 2001
- Winch capacity: 5,000 m of 3/16“ (4.76 mm) single-core cable; 5,000 m of 7/32“ (5.56 mm) single-core cable
- Max. tension – 3,000 kg
- Logging speed – 1 m/min. and up
Warrior Well Logging System, analogous, supports thermal well log plotters, LAS digital

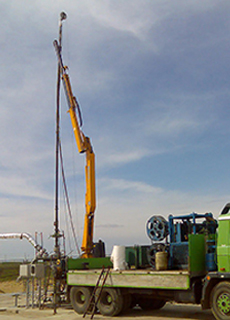

TATRA Auxiliary Truck
- TATRA 815 Chassis
- EFFER 110/2S hydraulic arm
- Range/height – 10.1 m
- Load-bearing capacity – 905 kg
- Application – transportation and handling of surface sealing equipment

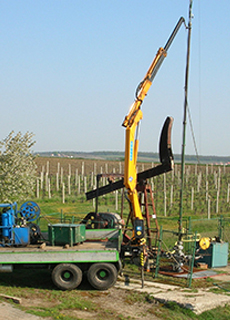

Pressure Control Equipment
- Working pressure – up to 5k PSI
- 3/16“ and 7/32“Grease Injection Head
- Lubricators/Risers – 3“ ID (76 mm)
- Tool Trap – a tool arresting system
- Wireline BOP
